| Cladding Material: | C1020 | Base Material: | 304L |
|---|---|---|---|
| Size: | (28+20+30+10+18)*300*400mm | Production Code: | ASTM A264, ASME SA264 |
| Edge Treatment: | Waterjet Cutting | Surface Treatment: | Auto Polished |

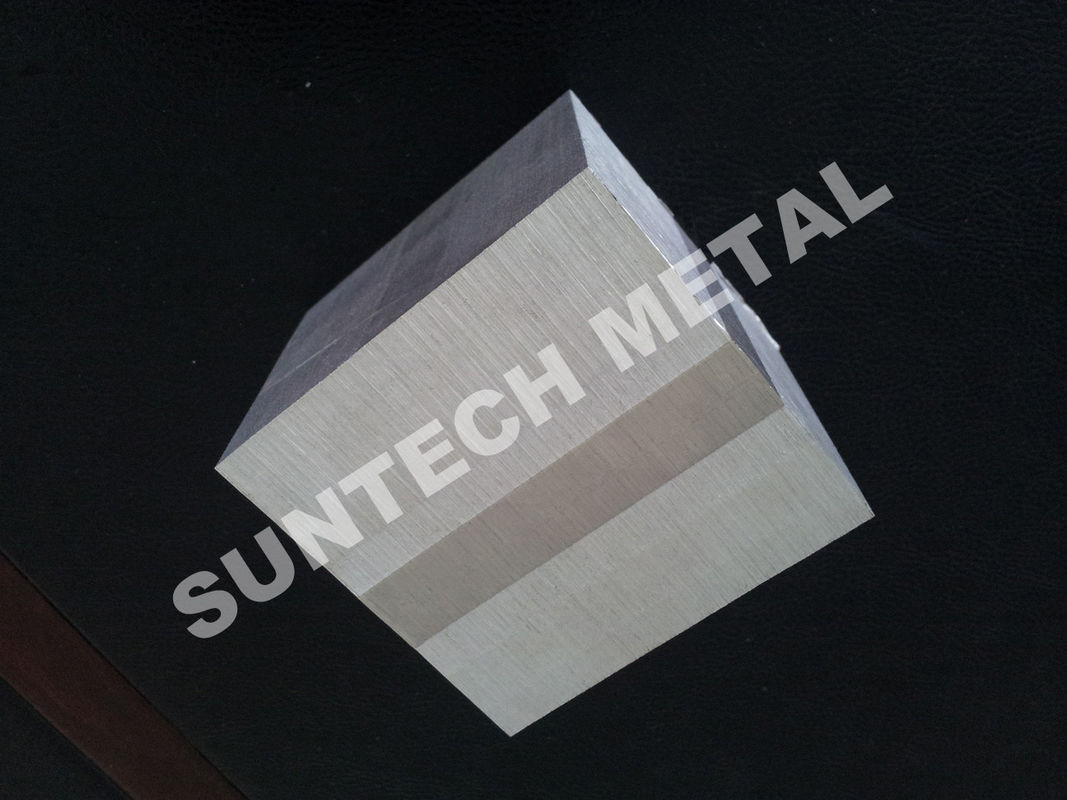

A1100 Aluminum Stainless Steel Explosion Bonded Clad Plate 30403 Base Layer
Detailed Product Description:
Explosion Bonded / Five layered Cladded Plate / Transitional Joint
Flying Layer:A1100
Base Layer: 304L/30403
Size: (28+20+30+10+18)*300*400mm
Edge Treatment: Machining
Packing: Plywood case packing
Application: Transitional Joint
Table for available type of Aluminum Stainless Steel clad plates:
|
Product Names: |
Aluminum Clad Plate/Sheet, Aluminum Clad Tube Sheet/ Tube Plate |
|||
|
Production Codes: |
CB-1343, DIN , BS, JIS, GB/T, ISO, etc. |
|||
|
Aluminum Grades: |
A1050, A1060, A1070, A1100, A5052, etc. |
|||
|
Form |
Description |
Base Layer |
Base Layer Grade |
Maximum Size |
|
Clad Plate |
Aluminum / Carbon Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) |
|
Copper (Naval Brass)/ Stainless Steel (Duplex) Clad |
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000) |
|
|
Titanium / Copper (Naval Brass) Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000) |
|
|
Copper (Naval Brass)/ Aluminum Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~14)/(6~50) x W(max W 1500) x L (max L 1500) |
|
|
Copper (Naval Brass)/ Nickel Clad |
Nickel and its alloy |
N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc |
(1.5~14)/(6~50) x W(max W 2000) x L (max L 5000) |
|
|
Copper (Naval Brass)/ Carbon Steel / Copper Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 4000) |
|
|
Copper / Titanium / Copper Clad |
Titanium |
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12 |
(1.5~14)/(2~100) x W(max W 2100) x L(max L 4000) |
|
|
Copper (Naval Brass)/ Carbon Steel / Stainless Steel Clad |
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 4000) |
|
|
Duplex, Stainless Steel & their forgings |
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc. |
|||
|
Aluminum / Copper / Carbon Steel Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000) |
|
|
Carbon steel plate and forging |
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc. |
|||
|
Aluminum / Copper (Naval Brass)/ Aluminum Clad |
Aluminum |
A1050, A1060, A1070, A1100, A5052, etc. |
(1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000) |
|
Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
Competitive Advantage:
Abundant experience: more than one decade of abundant experience in non-ferrous metal cladding and production;
Technical consulting service: technical consulting on material, welding, NDE, etc;
Independent inspection service: in-process inspection, final inspection;
Transportation advantage: 296kms away from Shanghai seaport.
